SRX Series Electric Drum Heater




	SRX-55 SERIES

Increase flow rate of viscous heat sensitive materials with a safe, efficient Electric Drum Heater.

SRX-55 SERIES

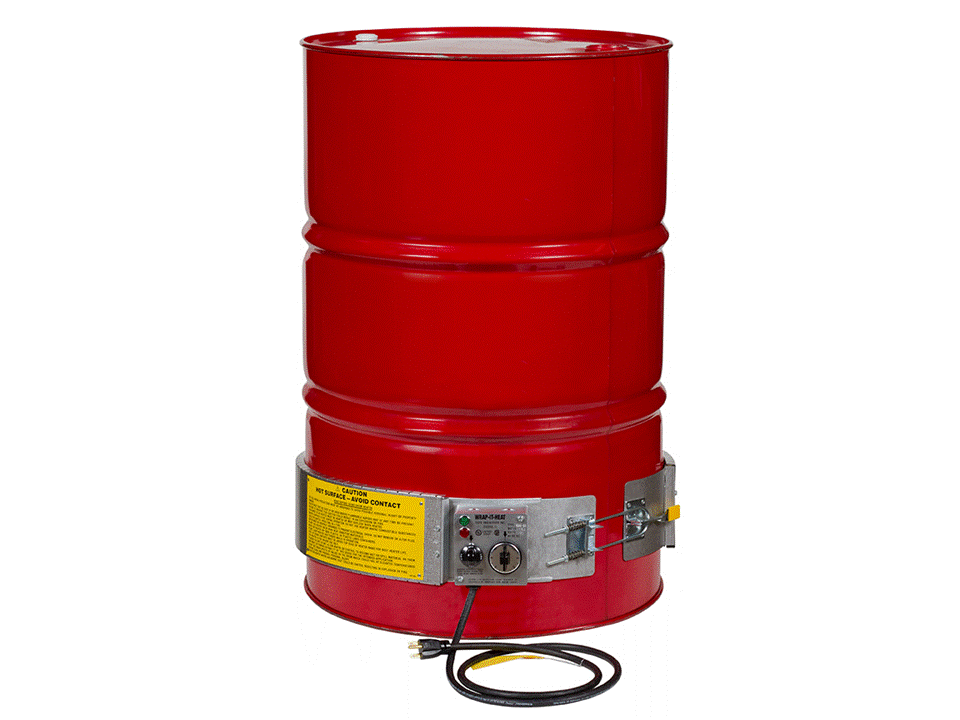

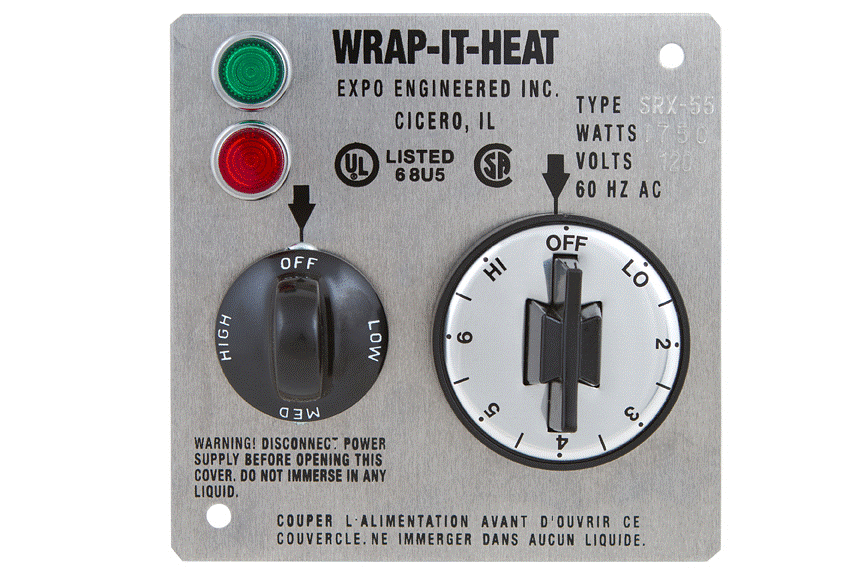

The WRAP-IT-HEAT® Model SRX-55 Drum Heater, is a drum heater featuring an INFINITE
control supplying an ON/OFF heat PULSING action. The control varies the length of the ON
segment of the cycle (at the wattage determined by the setting of the THREE HEAT SWITCH)
and the OFF segment of the cycle (at zero wattage output). Model SRX-55 is for standard 55
gallon all METAL drums. SRX-55 cannot be used on Plastic, Plastic Lined or Fiber Drums.

EXPO ENGINEERED Model SRX-55 Drum Heater is designed for heating materials that are
subject to coking, burning or chemical separation, such as food, chocolate, honey, light oils,
chemical and undercoating materials, etc. Model SRX-55 does NOT have a thermostat and
therefore will not AUTOMATICALLY reach and maintain a given temperature. However, the
INFINITE control allows the operator to CLOSELY control the heater OUTPUT within a given
range of HIGH, MEDIUM or LOW. The three heat switch allows three wattage ratings per
control setting and voltage rating: HIGH = Maximum Watts; MEDIUM = 1/2 Maximum Watts and
LOW = 1/4 Maximum Watts. Equipped with spring loaded toggle clamp for snug fit, 6 foot
power cord and high ampere three pin plug. For 120V operation, use NEMA 5-20 Outlet. For
240V operation, use 6-15 Outlet. FOR INDOOR USE ONLY.

SRX-55 is to be used to heat NON-FLAMMABLE, NON-COMBUSTIBLE materials only in a
NON-HAZARDOUS area.

The WRAP-IT-HEAT Model SRX-55 Drum Heater is U.L. Listed and C.S.A. Certified.

SPECIFICATIONS

Diameter .................................................................................22-1/2"
Shipping weight........................................................14 lbs. (Approx.)
Operating Voltage............(specify when ordering).......120V AC or 240V AC
Output....................120 Volts AC/1750 Watts (5,971 Btu/Hr)---NEMA 5-20
                             or 240 Volts AC/3000 Watts (10236 Btu/Hr)-NEMA 6-15
Amperage ..................................................14.6 Amperes at 120 Volts
                                                          12.5 Amperes at 240 Volts
_________________________________________________________________________

MODEL SRX-30

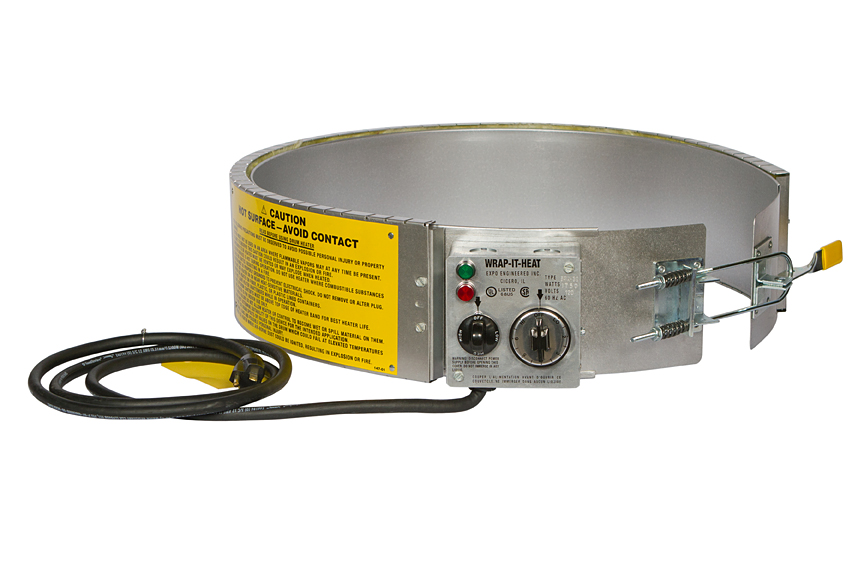

The WRAP-IT-HEAT® Model SRX-30 Drum Heater, is a drum heater featuring an INFINITE
control supplying an ON/OFF heat PULSING action. The control varies the length of the ON
segment of the cycle (at the wattage determined by the setting of the THREE HEAT SWITCH)
and the OFF segment of the cycle (at zero wattage output). Model SRX-30 is for standard 30
gallon all METAL drums. SRX-30 cannot be used on Plastic, Plastic Lined or Fiber Drums.

EXPO ENGINEERED Model SRX-30 Drum Heater is designed for heating materials that are
subject to coking, burning or chemical separation, such as food, chocolate, honey, light oils,
chemical and undercoating materials, etc. Model SRX-30 does NOT have a thermostat and
therefore will not AUTOMATICALLY reach and maintain a given temperature. However, the
INFINITE control allows the operator to CLOSELY control the heater OUTPUT within a given
range of HIGH, MEDIUM or LOW. The three heat switch allows three wattage ratings per
control setting and voltage rating: HIGH = Maximum Watts; MEDIUM = 1/2 Maximum Watts and
LOW = 1/4 Maximum Watts. Equipped with spring loaded toggle clamp for snug fit, 6 foot
power cord and high ampere three pin plug. For 120V operation, use bell NEMA 5-20 Outlet.
FOR INDOOR USE ONLY.
SRX-30 is to be used to heat NON-FLAMMABLE, NON-COMBUSTIBLE materials only in a
NON-HAZARDOUS area.

The WRAP-IT-HEAT Model SRX-30 Drum Heater is U.L. Listed and C.S.A. Certified.

SPECIFICATIONS

Diameter .................................................................................18-1/2"
Shipping weight ........................................................12 lbs. (Approx.)
Operating Voltage..........................................120V AC Single Phase
Output............................120 Volts AC/1750 Watts (5,971 Btu/Hr)
Amperage ...........................................14.6 Amperes at 120 Volts AC
__________________________________________________________________________

MODEL SRX-16

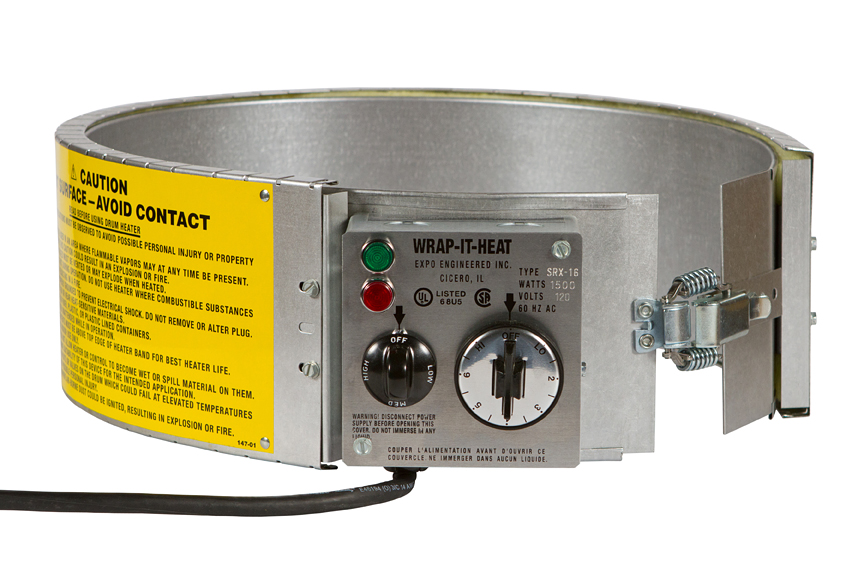

The WRAP-IT-HEAT® Model SRX-16 Drum Heater depicted, is a drum heater featuring an
INFINITE control supplying an ON/OFF heat PULSING action. The control varies the length of
the ON segment of the cycle (at the wattage determined by the setting of the THREE HEAT
SWITCH) and the OFF segment of the cycle (at zero wattage output). Model SRX-16 is for
standard 16 gallon all METAL drums. SRX-16 cannot be used on Plastic, Plastic Lined or
Fiber Drums.

EXPO ENGINEERED Model SRX-16 Drum Heater is designed for heating materials that are
subject to coking, burning or chemical separation, such as food, chocolate, honey, light oils,
chemical and undercoating materials, etc. Model SRX-16 does NOT have a thermostat and
therefore will not AUTOMATICALLY reach and maintain a given temperature. However, the
INFINITE control allows the operator to CLOSELY control the heater OUTPUT within a given
range of HIGH, MEDIUM or LOW. The three heat switch allows three wattage ratings per
control setting and voltage rating: HIGH = Maximum Watts; MEDIUM = 1/2 Maximum Watts and
LOW = 1/4 Maximum Watts. Equipped with spring loaded toggle clamp for snug fit, 6 foot
power cord and 3 wire plug for grounded operation. FOR INDOOR USE ONLY.

SRX-16 is to be used to heat NON-FLAMMABLE, NON-COMBUSTIBLE materials only in a
NON-HAZARDOUS area.

The WRAP-IT-HEAT Model SRX-16 Drum Heater is U.L. Listed and C.S.A. Certified.

SPECIFICATIONS

Diameter ......................................................................................14-1/2"
Shipping weight ........................................................10 lbs. (Approx.)
Operating Voltage..........................................120V AC Single Phase
Output.......................120 Volts AC/1500 Watts (5,118 Btu/Hr)
Amperage ...........................................12.5 Amperes at 120 Volts AC
_________________________________________________________________________

MODEL SRX-5

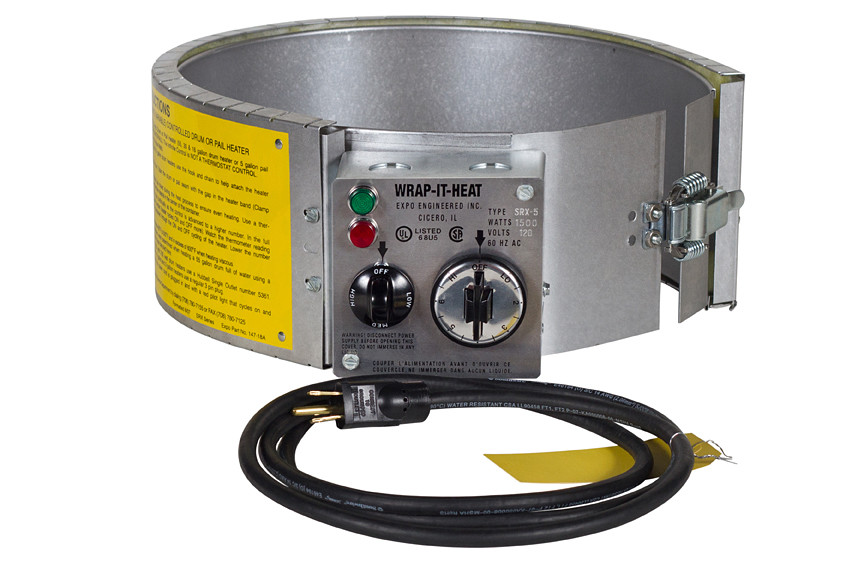

The WRAP-IT-HEAT® Model SRX-5 Pail Heater, is a pail heater featuring an INFINITE control
supplying an ON/OFF heat PULSING action. The control varies the length of the ON segment
of the cycle (at the wattage determined by the setting of the THREE HEAT SWITCH) and the
OFF segment of the cycle (at zero wattage output). Model SRX-5 is for standard 5 gallon all
METAL pails. SRX-5 cannot be used on Plastic, Plastic Lined or Fiber Drums.

EXPO ENGINEERED Model SRX-5 Pail Heater is designed for heating materials that are
subject to coking, burning or chemical separation, such as food, chocolate, honey, light oils,
chemical and undercoating materials, etc. Model SRX-5 does NOT have a thermostat and
therefore will not AUTOMATICALLY reach and maintain a given temperature. However, the
INFINITE control allows the operator to CLOSELY control the heater OUTPUT within a given
range of HIGH, MEDIUM or LOW. The three heat switch allows three wattage ratings per
control setting and voltage rating: HIGH = Maximum Watts; MEDIUM = 1/2 Maximum Watts and
LOW = 1/4 Maximum Watts. Equipped with spring loaded toggle clamp for snug fit, 6 foot
power cord and 3 wire plug for grounded operation. FOR INDOOR USE ONLY.

SRX-5 is to be used to heat NON-FLAMMABLE, NON-COMBUSTIBLE materials only in a
NON-HAZARDOUS area.

The WRAP-IT-HEAT Model SRX-5 Pail Heater is U.L. Listed and C.S.A. Certified.

SPECIFICATIONS

Diameter....................................................................11-1/4"
Shipping weight .....................................................7 lbs. (Approx.)
Operating Voltage..........................................120V AC Single Phase
Output..........................120 Volts AC/1500 Watts (5,118 Btu/Hr)
Amperage ...........................................12.5 Amperes at 120 Volts AC

Note: If you require a CUSTOM designed Drum Heater for a special application, please consult
your distributor or the manufacturer.
